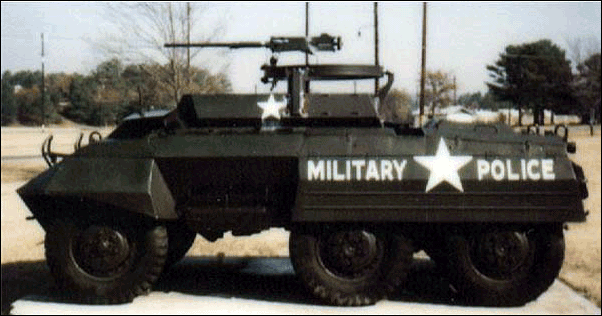

The shift levers are to the right of the driver but in a pattern reversed from the normal 4 speed shift pattern. The armor is steel plate, 7/8 inches thick, on the front of the vehicle and 3/8 inches thick on the sides, with welded construction. The headlights were designed to be detached and stored inside during battle operations. Storage boxes are integral parts of the fenders. The vehicle commander sits on the right side of the turret, while the gunner sits on the left side of the turret. The vehicle is equipped with a syncromesh transmission, which eases shifting since double clutching is not required, as with other vehicles. The instrument cluster was somewhat sparse The hydraulically operated clutch and accelerator pedals are required because of the remote location of the engine. The power plant is a 6 cylinder, in line, JXD Hercules, 320 cubic inch, 110 hp, gasoline engine. It was found that tire chains helped out immensely in off road muddy conditions. Crews had to tie their duffel bags on the outside of the vehicle, since there was little room inside for much else other than the four men normally assigned to an M8. |
